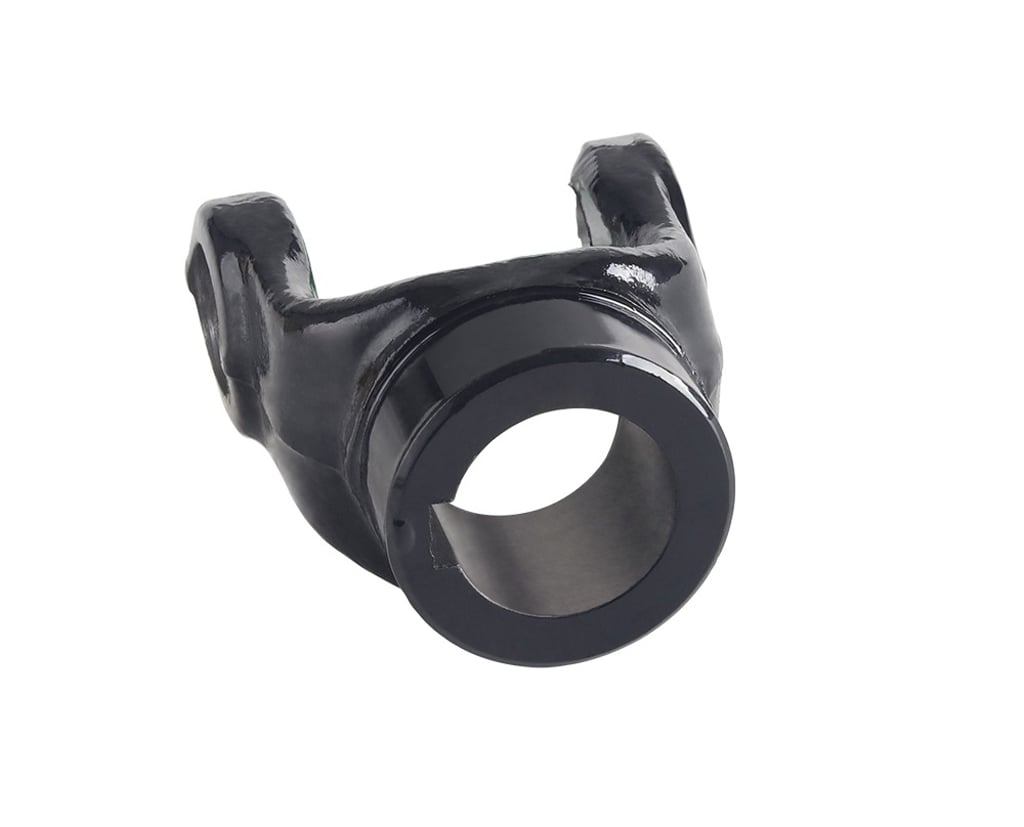

C key slot + threaded hole
Key Design Features:
1. Precision Spline Engagement
Hardened Spline Profile – Precision-machined splines (HRC 58-62) ensure zero-backlash torque transmission and smooth sliding action
Multiple Spline Standards – Available in DIN, SAE, JIS, or custom profiles to match your driveline requirements
High-Torque Capacity – Optimized involute or straight spline geometry for maximum load distribution and minimal stress concentration
Corrosion-Resistant Surface – Phosphated, coated, or nitrided splines prevent rust and ensure smooth operation over extended service life
2. Integrated Yoke Configuration
Telescopic Length Adjustment – Internal spline design allows axial movement for driveline length compensation and misalignment absorption
Solid Forged Construction – One-piece yoke body manufactured from 20CrMnTi or 20Cr alloy steel for superior strength
Multiple End Connections – Choose from flange, welded, or splined end fittings to suit various assembly requirements
Precision Bore Machining – CNC-machined bearing seats ensure perfect cross journal alignment and extended bearing life
3. Superior Torque Transmission
Precision-ground cross journal with hardened bearing surfaces (HRC 58-62)
Needle roller bearings with high load capacity and low friction
Operating angles up to 25°-30° (single joint), 40°+ with double joint configuration
4. Industrial-Grade Durability
Yoke body, cross and bearing caps manufactured from 20CrMnTi or 20Cr alloy steel
Carburizing and hardening heat treatment for wear resistance
Sealed grease lubrication with multi-lip nitrile rubber seals
Corrosion-resistant coating options: black oxide, zinc plating, or phosphating
5. Versatile Configuration Options
Sliding Spline Yoke – For applications requiring axial movement and length adjustment
Fixed Spline Yoke – For rigid connections with precise torque transmission
Double Yoke Assembly – For parallel offset or high-angle applications
Combination Designs – Spline yoke paired with flange or welded yoke ends
Why Choose Hangzhou Ocean Industry Co., Ltd.?
20+ Years Manufacturing Experience in automotive driveline components
Global Export Network – Serving customers in 50+ countries
Advanced Production Facilities – CNC machining, heat treatment, dynamic balancing
Reliable Lead Times – 15-30 days for standard products, 45-60 days for custom orders
Professional Technical Support – Engineering team with automotive industry expertise
Long-term Partnership Approach – Dedicated account management for strategic clients
Hangzhou Ocean Industry Co., Ltd. is professional manufacturer and most of our goods are exported to Europe since 2005. The C key slot + threaded hole from Hangzhou Ocean Industry Co., Ltd. is a precision-engineered mechanical coupling designed to transmit torque between two shafts that are angularly misaligned. Featuring an internal threaded retention system, this universal joint offers secure bearing cap retention, easy maintenance access, and reliable performance across a wide range of industrial and automotive applications.
Crafted with high-grade alloy steel and precision machining, this universal joint ensures smooth power transmission, minimal backlash, and extended service life even under demanding operating conditions.
